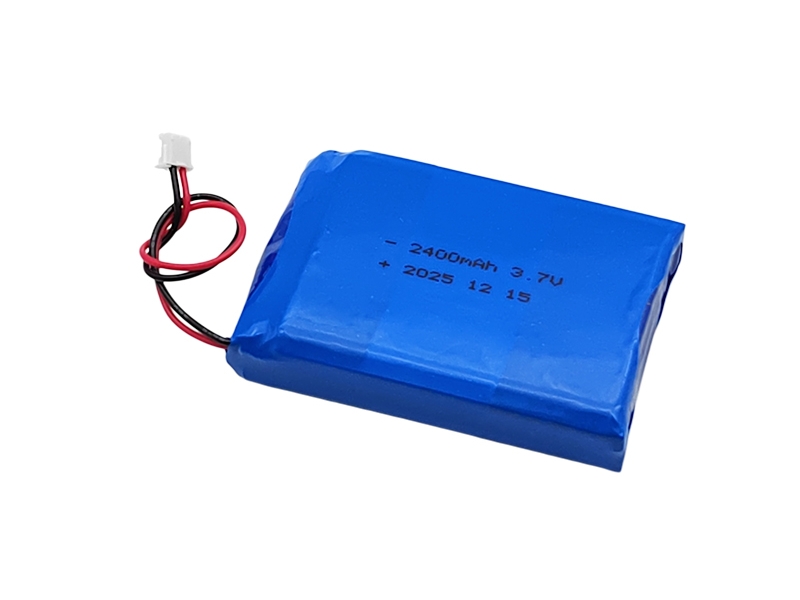

3.7V polymer lithium battery product model: XL 3.7V 2400mAh
Technical parameters of 3.7V polymer lithium battery (specifically designed according to customer requirements - voltage/capacity/size/circuit)
Single battery model: 603450
· Single cell voltage: 3.7V
·The nominal voltage of the battery pack after assembly: 3.7V
· Single battery capacity: 1200mAh
· Battery combination method: 1 series and 2 parallel
·The battery voltage range after combination: 3.0V to 4.2V
· Battery capacity after combination: 2400mAh
· Battery pack power: 8.88W
· Battery pack size: 12*35*53mm
· Maximum discharge current: <2.4A
· Instantaneous discharge current: 4.8A to 7.2A
· Maximum charging current: 0.2-0.5C
· Charge and discharge cycles: > 500 times
· Main chips: (Seiko, TI)
3.7V polymer lithium battery
It complies with the relevant national standards and requirements for batteries
All finished batteries have been calibrated and tested before leaving the factory and can be used directly and normally.
